380V PLC Touch Screen Pressure Thermoforming Machine with 10 Times/Minute Speed for Plastic Covers

Applicable sheet materials : PVC、PP、PE、POF、PPT、PTGF、APET、ABS、OPP、PS、PET

Overall weight : Approximately 3000KG

Machine dimensions : L7350×W1770×H2700mm

model : HX-76HD

Brand Name : HengXing

Model Number : HX-76HD

Certification : CE

Place of Origin : China

MOQ : 1

Price : USD：6999 $ (deposit)

Payment Terms : D/A,L/C,D/P,Western Union

Delivery Time : 45 work days

Packaging Details : wooden case

Electric furnace power : Maximum 39KW

Material thicknes : 0.1-2.5mm

vacuum pump : Cosmic star 200m ³/H

Working speed : 1-10 times/minute

Forming length : 1220 mm

Forming width : 420-710mm

Contact Now

380V Touch Screen Pressure Thermoforming Machine PLC Control 1-10 Times/Minute
HX 76HD Pressure Thermoforming Machine High Difficulty Product Adaptation
Various types of films (PVC, PP, PE, POF, PPT, PTGF, APET, ABS, OPP, PS, PET, etc.) can be vacuum molded into plastic covers of different shapes through different molds. Applications include toys, hardware, food, electronics, daily necessities, clothing, as well as ceiling panels, wall panels, cake boxes, automotive materials, and sanitary materials with three-dimensional relief patterns. This creates exquisite inner lining and outer packaging, making products refreshing and improving competitiveness.
Main Features
Power Saving
  • Electric furnace touch screen control with one-key adjustment and heating, displaying actual center temperature inside the furnace
  • Quick preheating: Using insulation and energy-saving heating bricks, the electric furnace preheats in 2 minutes, then maintains constant temperature in 3-5 minutes (compared to 20 minutes for traditional machines)
  • Electric furnace misalignment adjustment: Can turn off a row of heating bricks for narrower sheets, saving one-sixth of electricity
Material Saving
  • 3KW motor combined with Mitsubishi frequency converter for precise blade pulling, reducing material and power loss
  • Double row needle chain transmission with stable high-speed operation and flexible length/width adjustment
  • Customized sheets require only 2.5-3cm extra material (vs 4-5cm for traditional machines)
  • Saves at least one-sixth of material compared to traditional machines
High Efficiency
  • Special high-strength wear-resistant aluminum body iron core girder with extended service life
  • Water cooling device and high-speed cold water spray for faster molding speed and quality assurance
  • Production speed twice as fast as traditional machines
  • Latest 2P air drum motor with enlarged blower wheel for larger cold air and faster cooling
Advanced Functions (Optional)
  • Hot air blowing system for more uniform product thickness and reduced water marks
  • Cold mold function to prevent PVC foam shell over-masking issues
Data Storage & Control
  • PLC touch screen control for parameter storage and recall
  • Enables rapid production setup for repeat orders with one-time molding
  • Reduces machine adjustment test piece losses

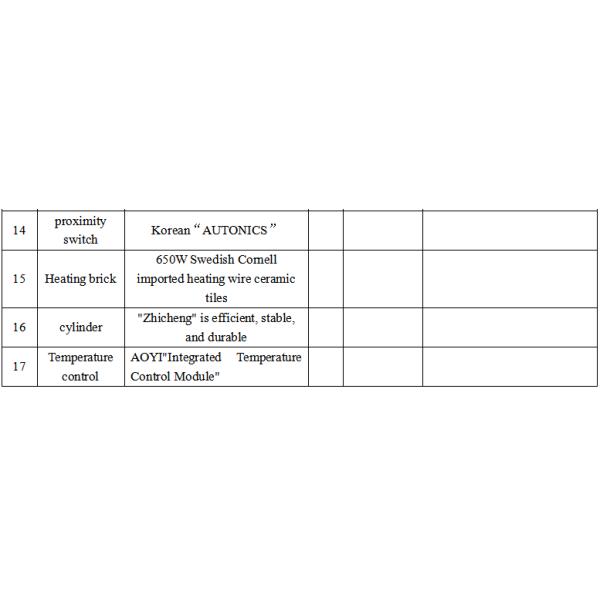

Machine Parameters
380V PLC Touch Screen Pressure Thermoforming Machine with 10 Times/Minute Speed for Plastic Covers 380V PLC Touch Screen Pressure Thermoforming Machine with 10 Times/Minute Speed for Plastic Covers
